Implementing LiveActivity

Unduh
Mode fokus
Ukuran font
Terakhir diperbarui: 2026-09-21 12:58:13

Limitations

Supported on iOS 16.1 and later.
Remote start (push-to-start) requires iOS 17.2 or later; for iOS 17.1 and earlier, only remote update and end are supported.
Real-time activities can appear on Dynamic Island for up to eight hours, and on the lock screen for up to twelve hours.
Remote operations require users to configure a P8 certificate.
Only iPhone devices are supported, specifically iPhone 14 Pro, 14 Pro Max, and newer models.

Integration Guide

Step 1: Configure Live Activities Support

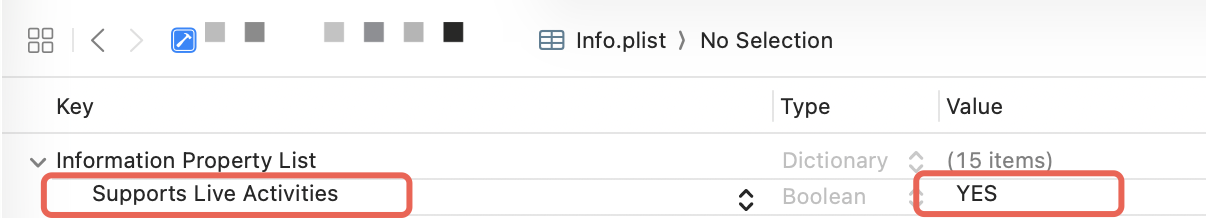

Add the following key-value pair to your main app's Info.plist: Supports Live Activities set to YES.

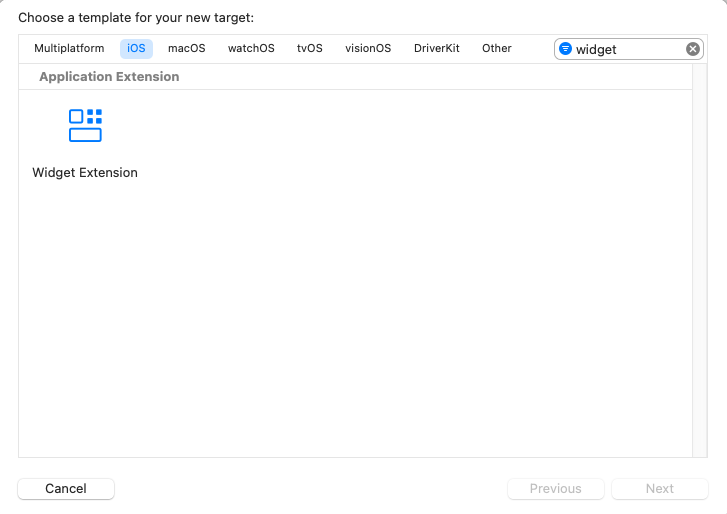

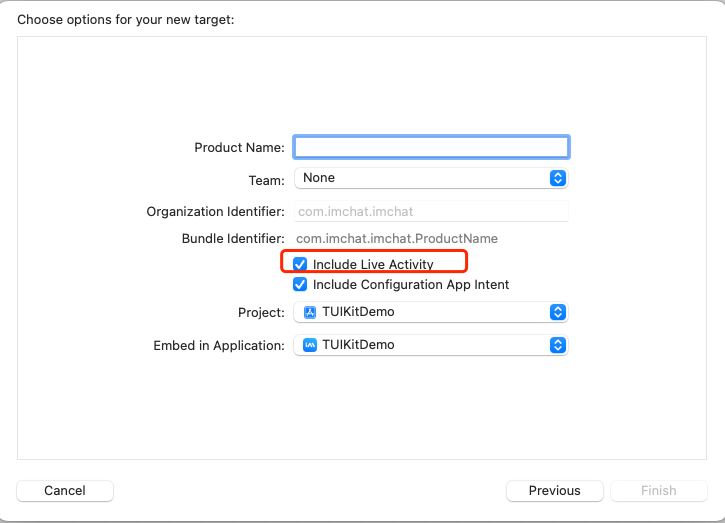

Step 2: Create WidgetExtension

If your project already includes this, you can skip this step.



Step 3: Implement Code

1. Define Activity Attributes

Adapt the following implementation to fit your business data model. The ContentState struct holds data that can be updated dynamically. It is recommended to use activityID as the unique identifier for each LiveActivity.
import Foundation
import ActivityKit

struct LiveActivityAttributes: ActivityAttributes {
    public struct ContentState: Codable, Hashable {
        // Add dynamic stateful properties for your activity here
        var text: String
        var pauseTime: Date?
        var endTime: Date?
    }

    // Add fixed properties for your activity here
    // Custom activityID when creating a LiveActivity
    var activityID: String
}

2. Build UI

Implement the UI based on your business requirements, including layouts for both the lock screen and Dynamic Island.
import ActivityKit
import WidgetKit
import SwiftUI

struct LiveActivityLiveActivity: Widget {
    var body: some WidgetConfiguration {
        ActivityConfiguration(for: LiveActivityAttributes.self) { context in
            // Lock screen/banner UI
            VStack {
                Text("Hello \\(context.state.text)")
            }
            .activityBackgroundTint(Color.cyan)
            .activitySystemActionForegroundColor(Color.black)

        } dynamicIsland: { context in
            DynamicIsland {
                // Expanded UI. Compose the expanded UI using
                // regions like leading, trailing, center, and bottom
                DynamicIslandExpandedRegion(.leading) {
                    Text("Leading \\(context.attributes.activityID)\\(context.state.text)")
                }
                DynamicIslandExpandedRegion(.trailing) {
                    Text("Trailing \\(context.state.text)")
                }
                DynamicIslandExpandedRegion(.center) {
                    Text("Center \\(context.state.text)")
                }
                DynamicIslandExpandedRegion(.bottom) {
                    Text("Bottom \\(context.state.text)")
                    // Add more content as needed
                }
            } compactLeading: {
                Text("CL \\(context.state.text)")
            } compactTrailing: {
                Text("CT \\(context.state.text)")
            } minimal: {
                Text("CB \\(context.state.text)")
            }
            .widgetURL(URL(string: "https://www.tencentcloud.com/document/product/269/100621?from_cn_redirect=1"))
            .keylineTint(Color.red)
        }
    }
}

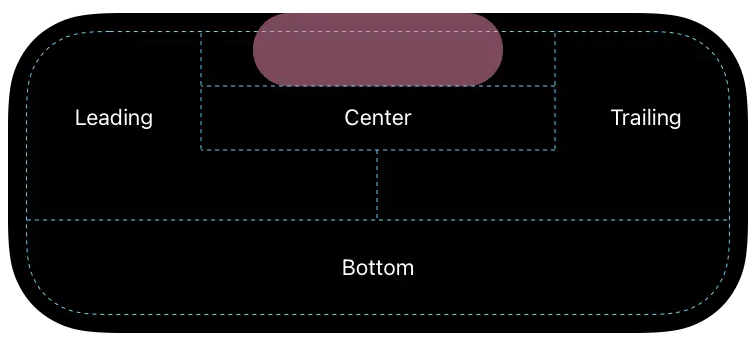

The Dynamic Island UI layout is structured as follows:


3. Client Operations: Start, Update, and Stop Logic

// start
let activity = try Activity.request(
            attributes: adventure,
            content: .init(state: initialState, staleDate: nil),
            pushType: .token
        )
// update
await activity.update(
    ActivityContent<AdventureAttributes.ContentState>(
        state: contentState,
        staleDate: Date.now + 15,
        relevanceScore: alert ? 100 : 50
    ),
    alertConfiguration: alertConfig
)
// end
await activity.end(ActivityContent(state: finalContent, staleDate: nil), dismissalPolicy: dismissalPolicy)

4. Remote Reporting Configuration and Update Operations

Monitor token updates and reporting
 Task {
     for await pushToken in activity.pushTokenUpdates {
         let pushTokenString = pushToken.hexadecimalString
         Logger().debug("New push token: \\(pushTokenString)")

         try await self.setLiveActivity(activityID:activity.attributes.activityID, pushToken: pushToken)
     }
 }

 func setLiveActivity(activityID: String, pushToken: Data) async throws {
     var _apnsConfig = ImSDK_Plus.V2TIMLiveActivityConfig()
     _apnsConfig.businessID = xxxx // Replace with the P8 certificate ID you uploaded in the IM Console
     _apnsConfig.token = pushToken
     _apnsConfig.activityID = activityID
     os_log("%@", type: .debug, "setLiveActivity activityID: \\(activityID)\\ntoken:\\(pushToken.hexadecimalString)")
         ImSDK_Plus.V2TIMManager.sharedInstance().setLiveActivity(_apnsConfig, succ: {
         print("setLiveActivity succ")
     }, fail: {code, desc in
         print("setLiveActivity fail, \\(code), \\(desc)")
     })
 }
Report and clear LiveActivity
 func clearActivity(activityID: String) async throws {
     os_log("clearActivity ID: \\(activityID)")
     ImSDK_Plus.V2TIMManager.sharedInstance().setLiveActivity(nil, succ: {
         print("clearActivity succ")
     }, fail: {code, desc in
         print("clearActivity fail, \\(code), \\(desc)")
     })
 }
Update and end iOS real-time activities from the server.
Note:
LiveActivity push is limited to P8 certificates. You must configure a P8 certificate.
If the recipient does not report the corresponding activityID, the push will automatically downgrade to a standard notification.
JSON Object Format Specification for ApnsInfo.LiveActivity
Field Name
Type
Option
Description
Event
String
Required
LiveActivity push event type: use start to start, update to update, and end to end. For details about LiveActivity in APNs, see the APNs documentation.
AttributesType
String
Optional
Required when Event is start. The name of the LiveActivity attribute type. This must exactly match the structure name defined on the client.
Attributes
JSON Object
Optional
Required when Event is start. A custom key:value object. These are static properties defined in the LiveActivity attribute type, used to initialize the LiveActivity, and must match the values in the client SDK.
LaId
String
Optional
Required when Event is update or end. The LiveActivity identifier, which corresponds to the client activityID. Must not exceed 64 bytes.
ContentState
JSON Object
Required
Required when Event is start, update, or end. A custom key:value object. These are dynamic properties defined in the LiveActivity attribute type, and must match the values in the client SDK.
DismissalDate
Integer
Optional
When Event is end, this is the Unix timestamp for when the LiveActivity stops displaying on the lock screen. Defaults to the current time, so the lock screen will end immediately.
Request Example:
For parameters omitted from or not listed in the example, see Sending One-to-One Messages, Sending One-to-One Messages in Batch, and offlinePushInfo.
{
  // Other parameters...
  "OfflinePushInfo": {
      "Title": "Offline push title",
      "Desc": "Offline push content",
      "Ext": "{\\"entity\\":{\\"k1\\":\\"v1\\",\\"k2\\":\\"v2\\"}}", // Pass-through field, recommended length no more than 1k
      "ApnsInfo": {
           "LiveActivity": {
               "Event": "update", // Update LiveActivity push
               "LaId": "timpush", // LiveActivity identifier, corresponds to client activityID, must not exceed 64 bytes
               "ContentState": {
                   "k1": "v1",
                   "k2": "v2",
                   ...
                }
            }
        },
        "AndroidInfo": {
            ... // See AndroidInfo field documentation for details
        }
  }
}
{
  // Other parameters...
  "OfflinePushInfo": {
      "Title": "Offline push title",
      "Desc": "Offline push content",
      "Ext": "{\\"entity\\":{\\"k1\\":\\"v1\\",\\"k2\\":\\"v2\\"}}", // Pass-through field, recommended length no more than 1k
      "ApnsInfo": {
           "LiveActivity": {
               "LaId": "timpush",
               "Event": "end", // End LiveActivity push
               "ContentState": {
                   "k1": "v1",
                   "k2": "v2",
                   ...
                },
               "DismissalDate": 1739502750
            }
        },
        "AndroidInfo": {
            ... // See AndroidInfo field documentation for details
        }
  }
}

5. Remote Start (push-to-start) Configuration and Operation

Remote start (push-to-start) refers to launching a new LiveActivity from the server when the app is not running (even if the process has been terminated). This uses a separate token mechanism from remote update/end.
Note:
Remote start requires iOS 17.2 or later. iOS 17.1 and earlier only support remote update/end.
The push-to-start token is registered by ActivityAttributes type (attributesType), independent of specific activityID. Each activity type has its own token.
The app can be remotely launched even when not running, as long as ActivityConfiguration(for: XXXAttributes.self) is implemented for that type in WidgetExtension.
Listen for push-to-start token updates and report
Similar to the update token, use the pushToStartTokenUpdates async sequence to listen and report via V2TIMLiveActivityConfig. The difference is: When reporting, set attributesType (activity type name); activityID is not required.
 // ActivityAttributes type monitored for remote start
 struct LiveActivityAttributes: ActivityAttributes {
     public struct ContentState: Codable, Hashable {
         var k1: String?
         var k2: String?
     }
     var activityID: String
     var k1: String?
     var k2: String?
 }

 // Remote start requires iOS 17.2 or above
 if #available(iOS 17.2, *) {
     Task {
         for await tokenData in Activity<LiveActivityAttributes>.pushToStartTokenUpdates {
             Logger().debug("New push-to-start token: \\(tokenData.hexadecimalString)")
             try await self.setStartLiveActivity(attributesType: "LiveActivityAttributes", pushToken: tokenData)
         }
     }
 }

 @available(iOS 17.2, *)
 func setStartLiveActivity(attributesType: String, pushToken: Data) async throws {
     let config = ImSDK_Plus.V2TIMLiveActivityConfig()
     config.businessID = xxxx // Replace with your P8 certificate ID uploaded in the IM Console
     config.token = pushToken
     // Remote start scenario: set attributesType (must exactly match the client ActivityAttributes class name), no need to set activityID
     config.attributesType = attributesType
     ImSDK_Plus.V2TIMManager.sharedInstance().setLiveActivity(config, succ: {
         print("setStartLiveActivity succ")
     }, fail: { code, desc in
         print("setStartLiveActivity fail, \\(code), \\(desc)")
     })
 }
Note:
If you need to test or support multiple ActivityAttributes types, listen to pushToStartTokenUpdates for each type separately, and report the corresponding attributesType for each.
Remotely start iOS LiveActivity via server
Note:
P8 certificate configuration is required. attributes-type must exactly match the client ActivityAttributes class name; otherwise, the system will not find the corresponding type and will discard it.
Fields for attributes and content-state must be decodable by the corresponding client ActivityAttributes and ContentState. If any required (non-optional) field is missing, the entire start will fail. The start event must include alert.
APNs start request example:
 {
  // Other parameters...
  "OfflinePushInfo": {
      "Title": "Offline push title",
      "Desc": "Offline push content",
      "Ext": "{\\"entity\\":{\\"k1\\":\\"v1\\",\\"k2\\":\\"v2\\"}}", // Pass-through field, recommended length no more than 1k
      "ApnsInfo": {
           "LiveActivity": {
               "Event": "start",                           // Start LiveActivity push
               "AttributesType": "LiveActivityAttributes", // LiveActivity attribute type name, must exactly match the type struct name defined on the client.
               "Attributes":{
                   "k1": "v1",
                   "k2": "k2",
                   ...
               },
               "ContentState": {
                   "k1": "v1",
                   "k2": "v2",
                   ...
                }
            }
        },
        "AndroidInfo": {
            ... // See AndroidInfo field documentation for details
        }
  }
}
